Linear Time Invariant System Examples

For linear time-invariant LTI systems the convolution is being utilized in order to achieve output response from the knowledge of input and impulse response. Y t 3x t - 2 x t - 4 5 x t 6 Convolution Representation. The time invariant systems are also called fixed systems. F F r k c km cm r r 0 1m ft 8 A single degree of freedom oscillator and all other linear dynamical systems may be described in a general sense using state variable descriptions xt Axt But x0 x. A time invariant system always gives the same output after same delay with respect to the input if the input is same. Systems and their properties. Time invariance specifically properties of memory invertibility stability and causality.

Consider a system S that transforms x n to y n.

Simple examples of linear time-invariant LTI systems include the constant-gain system y t 3 x t and linear combinations of various time-shifts of the input signal for example. One has to specify all the. A system that behaves according to the convolution integral. Yn 3xn is linear since 2yn 32xn reduces to yn 3xn. The concept of LTI should be explained independent of whether or not the time is continuous. Similarly when coefficient in the system relationship is a function of time then also the system is time variant.

Introduction To Linear Time Invariant System Descriptions Youtube

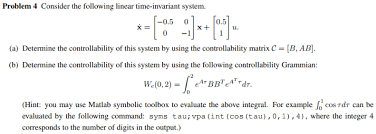

Linear time invariant system examples. H k n h 0 n k. 8k1yk 1 3yk 7fk 1. Linear Time Invariant Systems 3 can be computed directly through a linear combination of the states and the input.

Dahleh et al have some nice notes on the MIT Opencourseware site. Signals Systems Linear Time Invariant Systems LTI Systems Consider the response of a linear System to an arbitrary input xn. Time-Invariant and Time-Variant Systems Solved Problems Part 1 - YouTube.

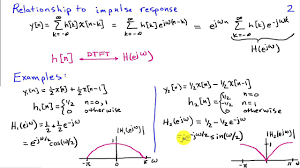

Maxim Raginsky Lecture III. YnH xn ynrH xnrr The behaviour of an LTI system is completely defined by its impulse response. Consider a system S that transforms x n to y n.

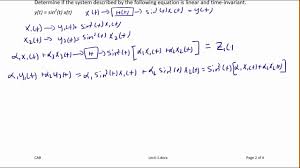

If it is time invariant then delayed version of input say x n-N produces output y n-N ie. Yn 3xn is linear since doubling it yields 2yn 6xn 2yn 32xn. Determine whether or not each of the following systems are time variant with input xt and output yt.

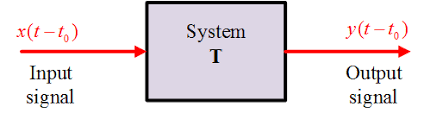

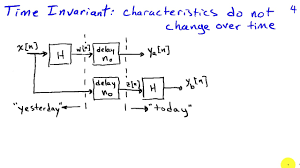

All time scaling cases are examples of time variant system. In this figure x t and x t t 0 are passed through the system TI. On the other hand yt t1 3x2t t1utt1 6 3 x2t t1ut unless t1 0 This system is time-varying.

A system is said to be linear if it satisfies the superposition principle. This is not the case for a linear time-varying system. Time-invariant systems are systems where the output does not depend on when an input was applied.

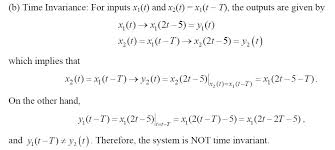

Example 1 Consider the system yt 3x2tut We have S n xt t1 o 3x2tt1ut. One has to specify all the.

Linear Time Invariant Lti Systems Youtube

Linear Time Invariant System What Is A Lti System Lti System Superposition And Time Invariance Youtube

Linear Time Invariant Lti Systems With Random Inputs

A A Linear Time Invariant Lti System Takes An Input Signal And Download Scientific Diagram

A Linear Time Invariant System Is Characterized By Its Impulse Download Scientific Diagram

Stochastic Processes Lecture 7 Linear Time Invariant Systems

Linear Time Invariant And Causal Systems Youtube

Systems

A A Linear Time Invariant Lti System Takes An Input Signal And Download Scientific Diagram

Linear Time Variant Linear Time Invariant Systems Youtube

Linear Time Invariant System Wikipedia

Sample Solution To Example Set 3 Linear Time Invariant Systems In

Linear Time Invariant System Wikipedia

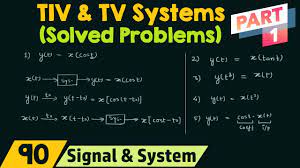

Time Invariant And Time Variant Systems Solved Problems Part 1 Youtube
